Exploring the Different Types of CNC Machines

The piece delves into CNC machining, relying on computer-guided tools to streamline manufacturing processes. It utilises G-code to direct machinery for precise execution, commencing with a CAD drawing translated into code. Exploring various CNC machine types—milling, turning, grinding, drilling, routers, laser cutting, and others—it highlights their unique applications and historical significance. It underscores the importance of comprehending these machines to master CNC machining and create precise components. Choosing the correct machine involves factors such as weight, work radius, speed, spare parts availability, and power requirements, crucial for enhancing precision and productivity in CNC projects.

What Is CNC Machining?

Understanding CNC Machining

CNC machining stands for Computer Numerical Control machining, a sophisticated method harnessing computer software to direct factory machinery and tools. This process relies on a specific language known as G-code, which commands machine actions like speed, feed rate, and coordination.

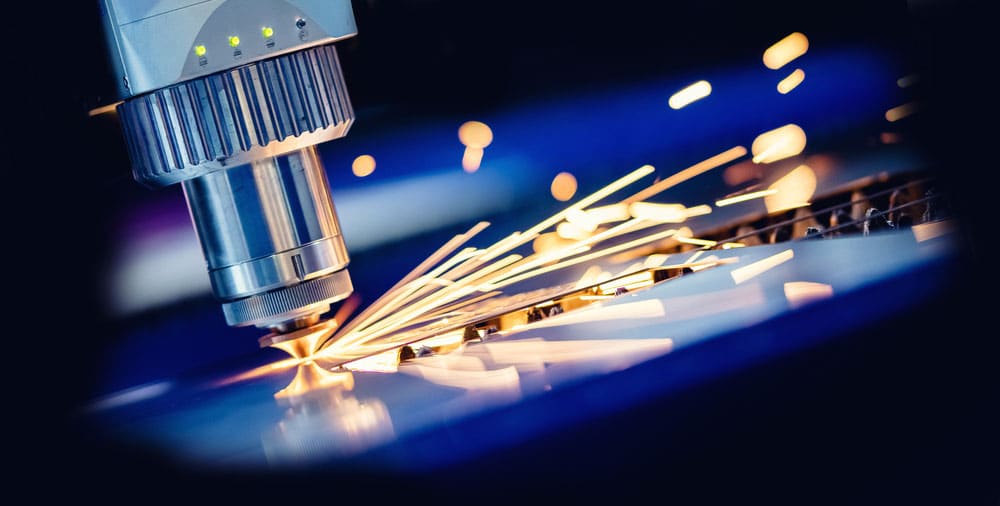

Close Up Laser CNC

How It Works

At its core, CNC machining streamlines manufacturing by pre-programming machine tool functions. This involves setting the speed and positions of these tools, allowing for consistent execution with minimal human intervention. The process typically starts with a 2D or 3D Computer-Aided Design (CAD) drawing, which is then translated into computer code for the CNC system to follow.

Precision and Testing

Before execution, a trial run is performed to ensure flawless code execution. This meticulous testing phase holds significant importance, especially in metal and plastic production, where precision and uniformity are critical factors. CNC machining revolutionizes manufacturing by automating processes, guaranteeing accuracy, and enabling the creation of intricate and precise components.

What Are the Different Machine Types?

CNC Milling

This process involves the use of high-speed cutting tools to precisely shape workpieces according to specified requirements.

CNC milling employs CNC-enabled machinery, often called mill machines or mills. These machines can be horizontally or vertically oriented, depending on the specific application. Basic models feature three-axis movements, allowing for precise control over the cutting process. However, more advanced mills can accommodate additional axes, enabling even more complex shapes to be created.

The types of mills available in the market vary, ranging from hand mills to omniversal milling machines. These machines remove material from a workpiece and shape it accurately. The size of the workpiece that a mill can handle depends on the enclosure size and the travel distance of the cutting tools.

Therefore, when choosing a mill for your CNC machining needs, it is essential to carefully consider its capabilities. Understanding the specific requirements of your projects and the size of the workpieces you will be working with will help you make an informed decision.

CNC Turning

While delving into CNC machining, it's crucial not to overlook CNC turning—an integral facet that demands attention. CNC turning employs a subtractive machining technique wherein the material rotates at high speed while a cutting tool meticulously removes excess material to shape the final piece.

Uniqueness of CNC Turning

What sets CNC turning apart lies in its historical roots. It draws from one of the oldest manufacturing methods, echoing principles akin to those found in a lathe. Unlike milling, it's the material itself, not the tool, that undergoes the spinning motion, defining the distinct nature of CNC turning.

Historical Significance

Its origins can be traced back to Ancient Egypt, showcasing a time-honoured technique for part fabrication. This historical lineage adds depth to its significance, presenting a tried and tested method that has stood the test of time.

Mastering CNC Turning

Understanding the nuances of CNC turning is pivotal in mastering CNC machining. It equips you with another powerful tool in your manufacturing arsenal, broadening your capabilities and offering versatility in crafting intricate components.
CNC turning stands as a testament to historical craftsmanship, seamlessly blending age-old principles with modern technology, enriching the realm of CNC machining.

CNC Grinding

The Precision Tool

A CNC grinding machine serves as an exceptionally precise tool employing a spinning grinding wheel to meticulously remove metal. Its primary application lies in crafting highly detailed and accurate finishes on components such as camshafts, ball bearings, and transmission shafts.

The Quest for Precision

Many components you'll handle during CNC grinding will often exhibit cylinder-shaped designs, amplifying the significance of the CNC grinder's precise movements. Mastering the art of utilising a CNC grinding machine becomes paramount as it significantly enhances your machining skills, empowering you to produce pieces with unparalleled precision and quality.

Mastery in CNC Machining

Acquiring proficiency in operating a CNC grinding machine stands as a key milestone in your journey towards mastering CNC machining. It not only refines your abilities but also opens doors to crafting components with extraordinary accuracy and finesse.

CNC Drilling

Machinery in Action

CNC drilling machines stand as tools capable of swiftly and precisely creating holes across various materials. Using spinning drill bits, these machines craft cylindrical holes while efficiently removing waste metal from the workpiece.

Understanding Drill Bits

Diverse drilling needs are met through various types of drill bits, each tailored for specific tasks within the drilling process:
• Spotting Drills: Primarily used to initiate holes accurately.
• Peck Drills: Ideal for drilling deeper holes with precision.
• Screw Machine Drills: Specifically designed for creating holes intended for screws.

Versatility in Application

CNC drilling machines find widespread use in workshops due to their ability to create holes for screws, assembly purposes, or even for aesthetic appeal. This versatility in drilling brings forth a blend of flexibility and precision to CNC machining processes.

Enhancing CNC Machining

This drilling process significantly enhances the flexibility and accuracy inherent in CNC machining, offering a pivotal method for creating precise perforations crucial for assembly and aesthetic requirements.

CNC Router

Precision and Versatility

CNC routers excel in creating intricate designs with precise measurements, owing to their capability for remarkably accurate cuts. These machines exhibit versatility, adeptly handling a variety of materials, ranging from wood to nonferrous metals.

Key Applications

A CNC router stands as an essential tool for cutting large-scale projects, including furniture, signs, and cabinets. Primarily operating in the X and Y axes, it utilises a rotating router bit to handle flat materials such as plywood or acrylic sheets.

Consistency through Automation

Controlled by computer programs, CNC routers ensure exact reproduction of designs, guaranteeing consistency across all parts. This precise replication is of utmost importance in industries like aerospace and automotive, where precision holds paramount significance.

Importance in Precision Industries

CNC routing plays a pivotal role in industries where precision is critical, such as aerospace and automotive. Its ability to replicate designs precisely makes it an indispensable tool for ensuring consistency and accuracy in manufacturing components.

CNC Laser Cutting

CNC laser cutting stands as a precise and versatile method used for accurately cutting a wide array of materials, utilising different types of lasers tailored for specific applications.

Understanding Laser Types

There are three primary types of lasers employed in CNC laser cutting:

CO2 Lasers: These lasers utilise a mix of carbon dioxide and excel in cutting non-metals while also engraving hard materials. Although primarily for non-metals, CO2 lasers can cut certain types of metals as well.

Solid-State Lasers: Renowned for their potency, solid-state lasers work effectively with various materials, including metals. Their versatility makes them a popular choice for diverse cutting applications.

Nitrogen Lasers: Specifically used when cutting without oxidising the material is essential. These lasers maintain precision while preventing oxidation, ensuring the material's integrity remains intact.

CNC Axis Machine

Enhanced Capabilities

A 5-axis CNC machine differs from conventional 3-axis machines by featuring two additional rotational axes, bringing the total to five. This expanded range enables access to five out of six sides of a workpiece simultaneously, eliminating the need for frequent manual adjustments by the operator.

Versatility Through Fixture Addition

When a tilting or rotating fixture is added to the work table, the machine transforms into a 3+2, indexed, or positional machine. This adaptation significantly enhances versatility, allowing for the creation of intricate shapes, such as sculptures and complex components.

Precision and Efficiency

The integration of a 5-axis CNC machine amplifies precision and efficiency in manufacturing operations. Its ability to access multiple sides of a workpiece simultaneously, coupled with the adaptability offered by additional fixtures, streamlines production processes and facilitates the creation of intricate and precise designs.

Electric Discharge CNC

Electric Discharge CNC (EDM) machines are fascinating, employing controlled sparks to sculpt materials precisely. This advanced process harnesses electrical discharges to craft highly accurate designs. When using EDM machines, your workpieces are positioned between the top and bottom electrodes.

What to anticipate with EDM machines:
• Precise control: The computer governs the intensity of electrical discharge between the electrodes.
• Swift material reshaping: Sparks rapidly alter the materials, enabling intricate designs.
• Minimal material damage: Due to the process's nature, there's typically limited harm to the material being worked on.

Additionally, it's worth noting that Electric Discharge CNC machines are valued for their ability to produce intricate, complex shapes that might be challenging with traditional machining methods. This process is particularly advantageous for materials that are difficult to machine conventionally, such as hardened steel or materials that are prone to deformation under mechanical stress.

CNC Plasma Cutting

CNC Plasma Cutting emerges as an unparalleled method for precision cutting of electrically conductive materials. Employing an electrical arc, akin to a plasma torch, this CNC technique ionises air to melt materials. The arc's precision is astounding, melting the material exactly where intended, yielding impeccably precise cuts.

Primarily, it excels with electrically conductive materials like steel, aluminium, or brass, making it ideal for cutting these metals efficiently.

However, it's crucial to highlight that CNC Plasma Cutting is more than mere cutting. It's about sculpting with utmost accuracy and effectiveness, rendering it an indispensable asset in your CNC machining arsenal.

In addition to its precision, CNC Plasma Cutting offers remarkable speed, making it suitable for industrial applications where both accuracy and efficiency are paramount. It's widely utilised in various industries such as automotive, aerospace, and metal fabrication due to its ability to swiftly and precisely cut intricate designs in metal sheets.

3D Laser Printing

This method, often employed for prototyping, revolves around CAD and CAM processes to formulate designs and blueprints. Subsequently, the 3D printer transforms these designs into tangible objects, layer by layer. Unlike conventional printing, 3D Laser Printing involves material addition, ensuring the creation of precise and top-quality finished products.

It's an innovative technique reshaping industries, spanning from engineering to healthcare. Grasping its operational principles is crucial for harnessing the full potential of CNC machining.

Moreover, 3D Laser Printing holds immense promise for various industries, facilitating rapid prototyping, customisation, and the production of complex geometries that traditional manufacturing methods might find challenging. Its applications extend to aerospace for producing lightweight components, healthcare for custom implants, and even fashion for creating avant-garde designs.

How To Choose The Right CNC Machine

To begin with, contemplate the machine's weight. Heavier machines, often crafted from iron cast, tend to exhibit greater durability, making them well-suited for heavy-duty tasks.

Next, assess the work radius. It ought to surpass the maximum area of your products, ensuring versatility in operations.

Speed, also known as feed rate, plays a crucial role. It dictates the pace at which materials can be cut, significantly impacting productivity.

Ensuring the availability of spare parts for the chosen brand is vital. This minimises downtime during repairs, ensuring seamless machine functionality.

Lastly, verify the machine's power requirements. Confirm that its power consumption aligns with your workshop's electrical system to prevent overload issues.

Selecting the most appropriate mill for your CNC machining requirements holds utmost importance. Understanding the specifics of your project and the dimensions of the workpieces involved is pivotal. This comprehension aids in making well-informed decisions, ensuring the chosen mill perfectly meets your project's demands.

Thoroughly evaluating the capabilities of different mills available in the market enables the optimisation of precision, efficiency, and productivity in your CNC machining endeavours.

CNC machining, guided by Computer Numerical Control (CNC) and G-code precision, revolutionises manufacturing. Its roots trace back to ancient craftsmanship, seen in techniques like CNC milling, turning, and grinding, each a testament to historical methods refined by modern technology.

These techniques, deeply rooted in history, from the precision of CNC milling to the rotational artistry of CNC turning and the accuracy of CNC grinding, redefine manufacturing's precision.

Understanding this historical lineage in CNC machining is key to mastering its methods and choosing the right CNC machine. Assessing factors like weight, work radius, and power requirements ensures a seamless match for project needs, optimising precision and productivity.
